OBS



Created by Dr. Chris Chang, OBS is made of medical grade, stainless steel and titanium, and is highly praised by doctors for its simplistic design, low failure rate and excellent quality. OBS is your must-have secret weapon for maximum, reliable anchorage.


  • *The largest wire in dimension compatible with the square holes of OBS 2.7 is 0.019"x0.025"

*TADs made of Ti alloy have a lower failure rate compared to SS when placed in thin cortical bone. These results are consistent with a biocompatibility-related tendency for less bone resorption at the bone screw interface. Reference: Failure Rates for SS and Ti-Alloy Incisal Anchorage Screws: Single-Center, Double Blind, Randomized Clinical Trial (J Digital Orthod 2018;52:70-79)
** The overall success rate of 93.7% indicates that both SS and TiA are clinically acceptable for IZC BSs. Reference: Failure rates for stainless steel versus titanium alloy infrazygomatic crest bone screws: A single-center, randomized double-blind clinical trial (Angle Orthod; pending publication)

Description Length(cm) Width(cm) Hight(cm) Weight(g)
Handle 10.2 2.57 2.57 93
Blade 8.0 0.5 0.5 5
Box 11.5 7 2.9 248
Super Set 11.5 7 2.9 367
Description Length(mm) Width(mm) Hight(mm) Weight(g)
OBS 1.5 11.5 3 3
OBS 2.0 15.8 3 3
OBS 2.7 17.8 3 3

Instruction


Type & Size Indication Location Frequency Position
1.5 (1.5x8mm) Premaxilla Intrusion (Solving Gummy Smile) Between upper central & lateral incisors’ roots 10% 1
2.0 (2x12mm) Maxillary Retraction IZC 50% 2
Palatal Impaction Palate 1% 3
Mandibular Retraction Buccal Shelf (BS) 20% 4
2.7 (2x14mm, with holes) Mandibular Retraction Buccal Shelf (BS) & 3D Lever Arm
Upper Impacted Cuspid IZC (3D Lever Arm) 4% 5
Horizontally Impacted 3rd Molar Ramus (for thick soft tissue) 4% 6
Mandibular Protraction Buccal Shelf (BS) 1% 7

Set


Super Set-2.0


Super Set-2.7


Basic Set



Sterilization instructions

OBS Screws are delivered in a non-sterile package and should be sterilized with the insertion devices, including handles and blades, before use. The following sterilization protocols can also be applied to the stainless steel storage case.

Method of sterilization:
1. Steam sterilization in an autoclave is recommended at a temperature of 121C/ 249F with a minimum of 25 minutes.
2. Temperature higher than the recommended level may cause markings fading over time.
3. It’s recommended to use distilled water only. Tab water or water with a high concentration of minerals will leave water stains which can be removed by wiping with fingers and/or alcohol wipe. However the stain will not cause damage to the instruments nor affect sterilization.
4. The sterilized screws/devices should be removed and can be dried with a disinfected cloth after the procedure. Do not keep the sterilized items in a humid environment over an extended period of time.


OBS Tutorial

OBS Advanced Application




Bite Turbo 2.0

Handle x1, BT molds x6, Button molds x6, BT longer molds x6




Designed by Dr. Chris Chang, the new Bite Turbo 2.0 allows you to solve all kinds of deep bite and large horizontal overjet. A simple and powerful tool you should add to your kit!




Description Length(cm) Width(cm) Hight(cm) Weight(g)
BT Handle 14.5 1.6 0.8 5
BT 1 0.4 0.4 4






Double Retractors

Double Retractors x2, Black Board x2



While keeping the same lip & cheek two-way design, the new Double Retractors 2.0 is upgraded to medical grade PPSU. This new material is more durable, resilient and most importantly, autoclavable. Its smooth edges and translucent quality make it the best aid to perfect intra-oral photography.





Description Length(cm) Width(cm) Hight(cm) Weight(g)
Double Retractors 15 7.3 1.9 16
Black Board 10 6 0.1 13



Stainless Steel Mirror

Size: L(Recommanded), M, S



Strong, durable stainless steel, autoclave-proof, the specially designed size, shape and thickness ensure maximum intra-oral view without sacrificing patient comfort.



Description Length(cm) Width(cm) Hight(cm) Weight(g)
Stainless Steel Mirror S 17 7.2 2.4 93
Stainless Steel Mirror M 20 7.8 2.7 114
Stainless Steel Mirror L 20 8.2 2.7 124

ART



Torquing Spring



Ivory separator

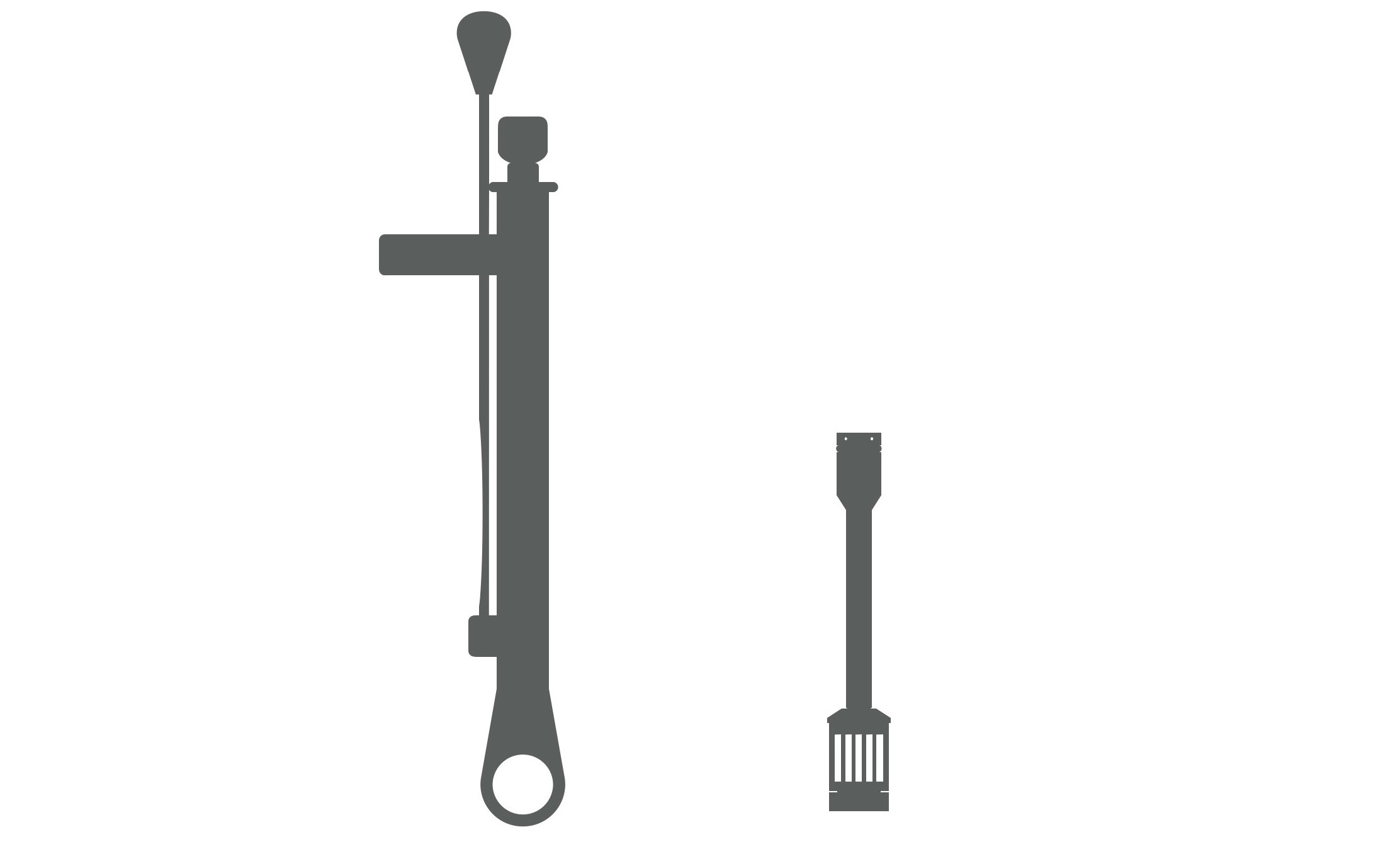

Torque Wrench & Torque Drive Tip
